50/75W SOLAR LED STREET LIGHT
Model: SSLD
Power watts: 50/75W
Light efficiency: 180lm/W
IP65 waterproof
UL,CUL, CE certifications.
Description
- The controller and IR sensor was built inside, the solar panel and LiFePO4 battery is integrated design, this is easy for wire and installation.
- LUMILEDS 5050, LED200Lm/W CRI>80.
- It can be used for three days at least when meet the continuous rainy day.
- High efficiency MPPT controller for charging.
- Operating Temperature -20°C~+50° C(Battery stop charging under 0° C).
- Optical Lens: High light transmittance PC, anti-UV and flame resistant.
- IP 65 rated.
1. Select the mounting pole of appropriate diameter( Max diameter≤3.15 inch)

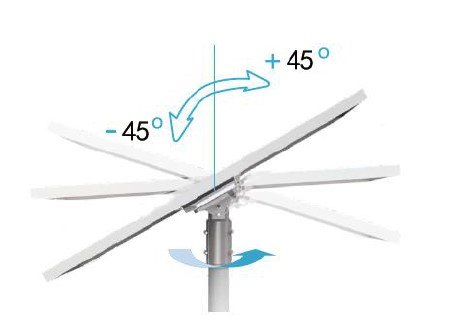

2. Adjust the angle between generating surface of solar panels and sunlight according to the installation environment, the maximum adjustable angle is +/-45degree. Pic
Controler
1. MPPT -DC infrared induction boost constant current integrated solar controller, maximum power tracking efficiency > 99%.
2. Full digital control technology, full range synchronous rectification, charging conversion efficiency up to 96%, discharge conversion efficiency up to 95.5%.
3. Pyroelectric human body infrared induction function.
4. Five phases time and power adjustment, occupied and unmanned power adjustable from 0~100%.
5. 10 to 150S adjustable induction delay time.
6. Operating parameters and status are readable.
7. When the battery power is low, you can set the automatic power reduction operation.
8. Power reduction point and power reduction proportion can be set.
9. Automatic battery power balanced 365 mode.
10. Automatic light control point adjustment function.
11. Equipped with LCD screen infrared remote control.
12. Comprehensive electronic protection.
