Muitiple Mounting Options 6W 15W Solar Led Street Light
Model: SSLH
Power watts: 6/15W
Light efficiency: 200lm/W
IP65 waterproof
UL,CUL, CE certifications.
Description
- Die-casting housing, UV resistant powder coat finish.
- The angle of Solar panel can be adjustable, apply to the sunshine from different
- direction.
- LUMILEDS 2835 LED200Lm/W CRI>80.
- Time and brightness can be set by remote control.
- It can be used for three days at least when meet the continuous rainy day.
- Integrated monocrystalline silicon solar panel, with more than 2000 cycles lifespan LiFePO4 battery.
- Operating Temperature -20°C~+50° C (Battery stop charging under 0° C).
- Optical Lens: High light transmittance PC, anti-UV and flame resistant.
- IP 65 rated.
- Various mounting parts, suitable for different applications.

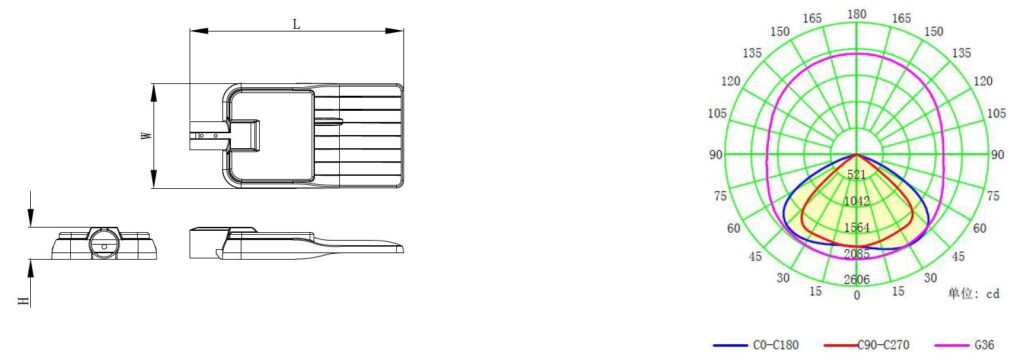

Installation Diagram
MOUNTING
1. Mount to the wall directly (FIG. 1).
2. Fast installation to the pole (FIG. 2, 60-100mm diameter pole).
Controler
1. MPPT -DC infrared induction boost constant current integrated solar controller, maximum power tracking efficiency > 99%.
2. Full digital control technology, full range synchronous rectification, charging conversion efficiency up to 96%, discharge conversion efficiency up to 95.5%.
3. Pyroelectric human body infrared induction function.
4. Five phases time and power adjustment, occupied and unmanned power adjustable from 0~100%.
5. 10 to 150S adjustable induction delay time.
6. Operating parameters and status are readable.
7. When the battery power is low, you can set the automatic power reduction operation.
8. Power reduction point and power reduction proportion can be set.
9. Automatic battery power balanced 365 mode.
10. Automatic light control point adjustment function.
11. Equipped with LCD screen infrared remote control.
12. Comprehensive electronic protection.
